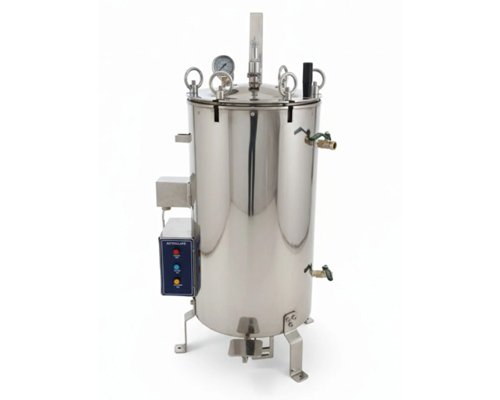

AUTO CLAVE Vertical Models
- Efficient sterilization.
- Electrically operated.
- Standard Vertical pattern.
- Working chamber (boiler) made of heavy gauge stainless steel SS 304 grade
- Outer chamber is made of Stainless steel SS 304 grade
- Lid is also made of heavy gauge stainless steel and accurately machined
- to form a steam tight joint with stainless steel ring also machined accurately for this purpose.
- Wing nuts made of Stainless steel to close the top lid.
- Silicon gasket (endless) will be provided along with the unit.
- Electrically heated by means of superior quality immersion heater.
- Pressure gauge, Steam release cock and safety steam valve fitted on the lid.
- Operating pressure 15 lbs per sq inch (psi) but the unit is tested up to 20 lbs per sq. inch
- Foot lifting arrangement to open the lid.
- The Unit shall be supplied with SS perforated basket.
- Stainless steel tripod stand to keep the basket inside the working chamber
- Overpressure cut off switch will be provided
- With built in Temperature controller cum Timer to set the Temperature
- and Time as you require.
- The unit provided with Plug and chord ready for use on 220/230 volts.
- Power supply 220-230 Volts AC single phase.
